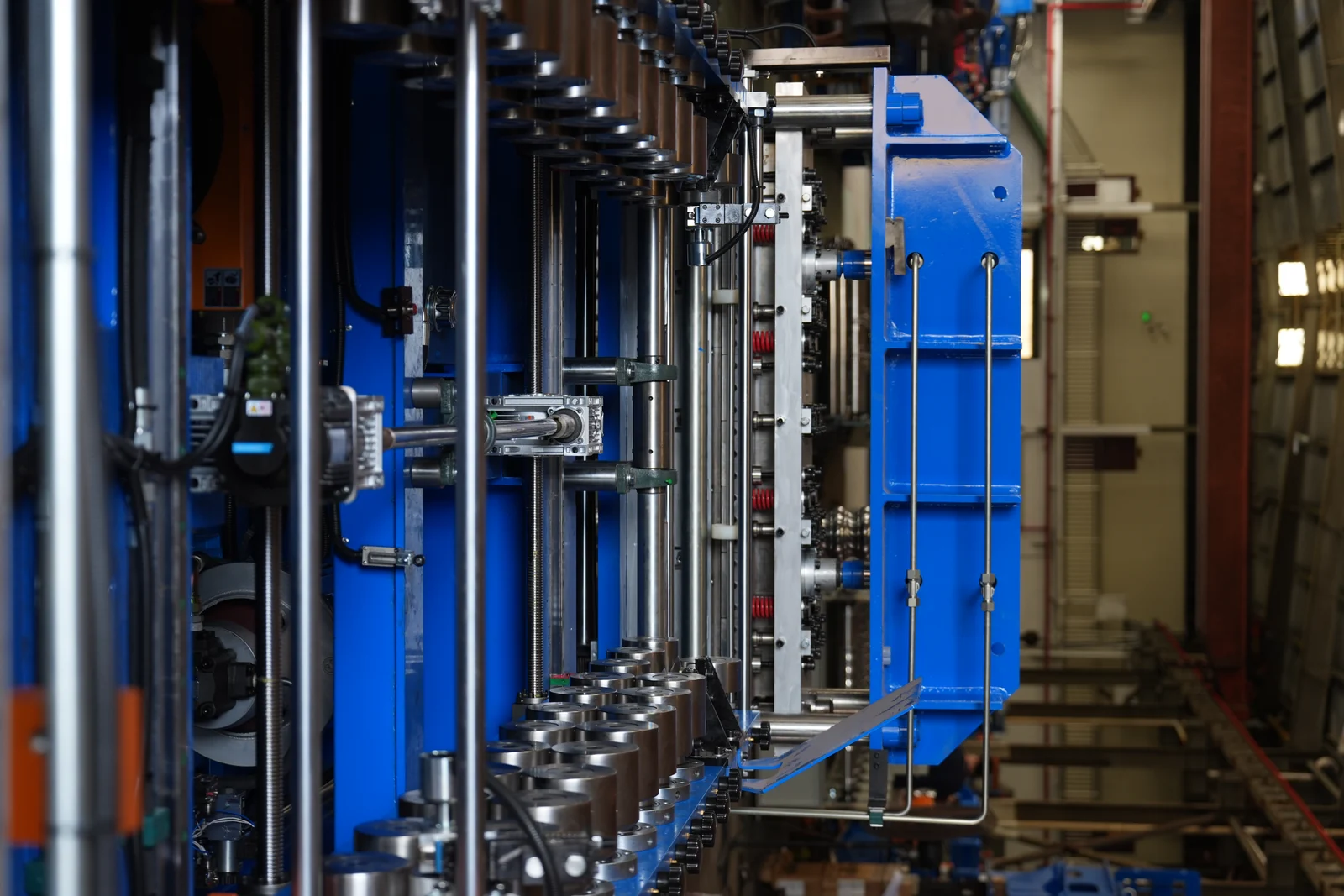

Custom Roll Forming Machine for Open Steel Sections
Compare a custom roll forming machine for open steel sections: profile families, tooling changes, punching, cut-off and drawing-based trial acceptance.
Direct buyer answer
Define one approved profile family and acceptance drawing before selecting the forming machine. A C, Z, channel, angle or hat section may need different tooling, feed, punching and cut-off arrangements. Do not assume a machine named for one family can produce all of them. Send each intended profile drawing and revision to review configuration and changeover scope with our factory team.
Buying equipment or ordering formed parts?
This page is for buyers planning their own steel-section production equipment. Halcyon prepares the proposed configuration with our factory team; this is not an offer for contract roll forming or a stock list of finished sections. Start with the open-section drawing, then establish which forming, punching, cutting and handling operations the quoted line must include.
C channel or U channel roll forming machine: which production task?
Choose from the finished section drawing and its use, not from the letter C or U alone. A lipped structural C section, a drywall stud, an unlipped track and a slotted mounting channel can require different rolls, punches, material ranges and cut-off tools. The table routes the enquiry to a relevant review; it does not establish that any line makes every channel.
| Your production requirement | Equipment route and drawing checks |
|---|---|
| C-shaped roof or wall purlin | Review the dedicated C purlin machine. Specify web, flange, lip, radius, steel grade, thickness and hole schedule; do not assume a U-channel conversion is included. |
| Drywall C stud and U track | Review the stud-and-track line. Identify both drawings, their fit, service or fixing holes, and separate first-off samples after each changeover. |
| Solar support or slotted mounting channel | Use the solar mounting equipment review for that application. Confirm the actual returns, slot pitch, edge distances, cut lengths and mating fasteners; the channel name alone does not establish system approval. |
| Another C or U open section | Send a drawing for a custom tooling review on this page. Identify the real application, each section variation and which changes must share a base line. A section used for a door guide or another assembly needs its own tooling and fit trial. |
For either a C channel roll forming machine or a U channel roll forming machine, quote the same agreed material, drawings, punching and handling scope. Ask our factory team to mark included profiles, tool changes and exclusions. Keep measured trial samples for each proposed section. Send the channel drawing and production schedule for a configuration review.
Dedicated profile or a shared production line?
| Your production requirement | What to compare | Evidence to request |
|---|---|---|
| One repeatable section | A dedicated tool set and a defined material and dimension range. | A configuration drawing and trial parts matching the exact approved section. |
| Several sizes within a related section family | Which dimensions can change by adjustment, which need tooling changes, and the setup procedure. | The supported drawings, a list of changed components and a witnessed changeover between representative sizes. |
| Different section families or punching requirements | Separate roll sets, punch tooling and cut-off tooling; whether a shared base is suitable or separate lines are needed. | A per-profile compatibility matrix. Do not accept a single family name as proof that every drawing is supported. |
Specify how often orders change and the actual lengths and quantities per batch. A line that suits repeated long runs may require a different setup plan from one serving many short batches. Ask our factory team to identify the proposed feed, forming, punching, cut-off and run-out sequence and its control interfaces; do not assume that every module or automatic changeover is included.
What determines a custom machine quotation?
Compare quotations against the same drawings and scope. Separate the base line, each roll and punch tool set, cut-off tooling, coil handling, run-out or stacking, controls, trial acceptance, installation and training. Record exclusions and site responsibilities. Keep tooling for future profiles separate from the initial order so an apparently lower price does not conceal a different scope.
There is no verified standard price or output rate for the entire steel-section family on this page. See the roll forming machine quotation guide for an itemized scope review, or request a drawing-based custom equipment proposal. Our factory team must confirm the offered capability and acceptance conditions in writing.
Compare the complete requirement
List steel grade, coating, thickness range, section dimensions, hole pattern, cut lengths, target output and application for every profile. Mark which profiles must share tooling and which need separate roll sets. If the section is structural, the project engineer remains responsible for member selection, load capacity and code compliance; a production-line photograph or profile sample cannot prove those properties.
Trial records to request
- Identify the material batch and approved drawing revision used in each trial.
- Measure critical dimensions, hole positions and cut lengths at agreed points on first-off and later pieces.
- Record setup changes and changeover time for each proposed profile rather than relying on a generic catalogue claim.
- Keep labeled samples and any independent material or system evidence required by the project.
Buyer questions
Will one machine make every C, Z and channel profile?
Not automatically. Our factory team must confirm the tooling, changeover and dimensional range for each drawing.
Does a formed sample prove structural strength?
No. It can show dimensional and surface results for the specified material and setup. Structural capacity requires engineering design and relevant testing.
What should I send for a proposal?
Send profile drawings, steel grades, thickness ranges, punching layouts, cut lengths, target output, application and which profiles must share a line.
Open sections or welded tube?
Specify the finished cross-section before comparing lines. The C, Z, angle and hat sections discussed here are open profiles. If the product needs a longitudinally welded closed section, review the welded pipe and tube mill purchasing requirements instead. Its proposal must address seam welding, sizing and weld inspection as well as forming and cut-off. A machine photo for an open profile does not establish welded-tube capability.
For a narrower application, review the C/Z purlin machine or CFS framing machine, then send your section drawings.
Source and limits: Halcyon Machinery buyer-review framework, updated 3 October 2026. No generic speed, depth or thickness envelope is offered as a tested machine capability.
