HWS-500 Node Welding Workstation
HWS-500 is presented in production-base material as a workstation for fabricated structural nodes. Buyers should test fixture repeatability, weld access around intersecting members and part identification on their own node family. Halcyon prepares the proposed build and acceptance record with our factory team.
Node familyconnections first
Fixture datumrepeat placement
Seam accessinspect every side

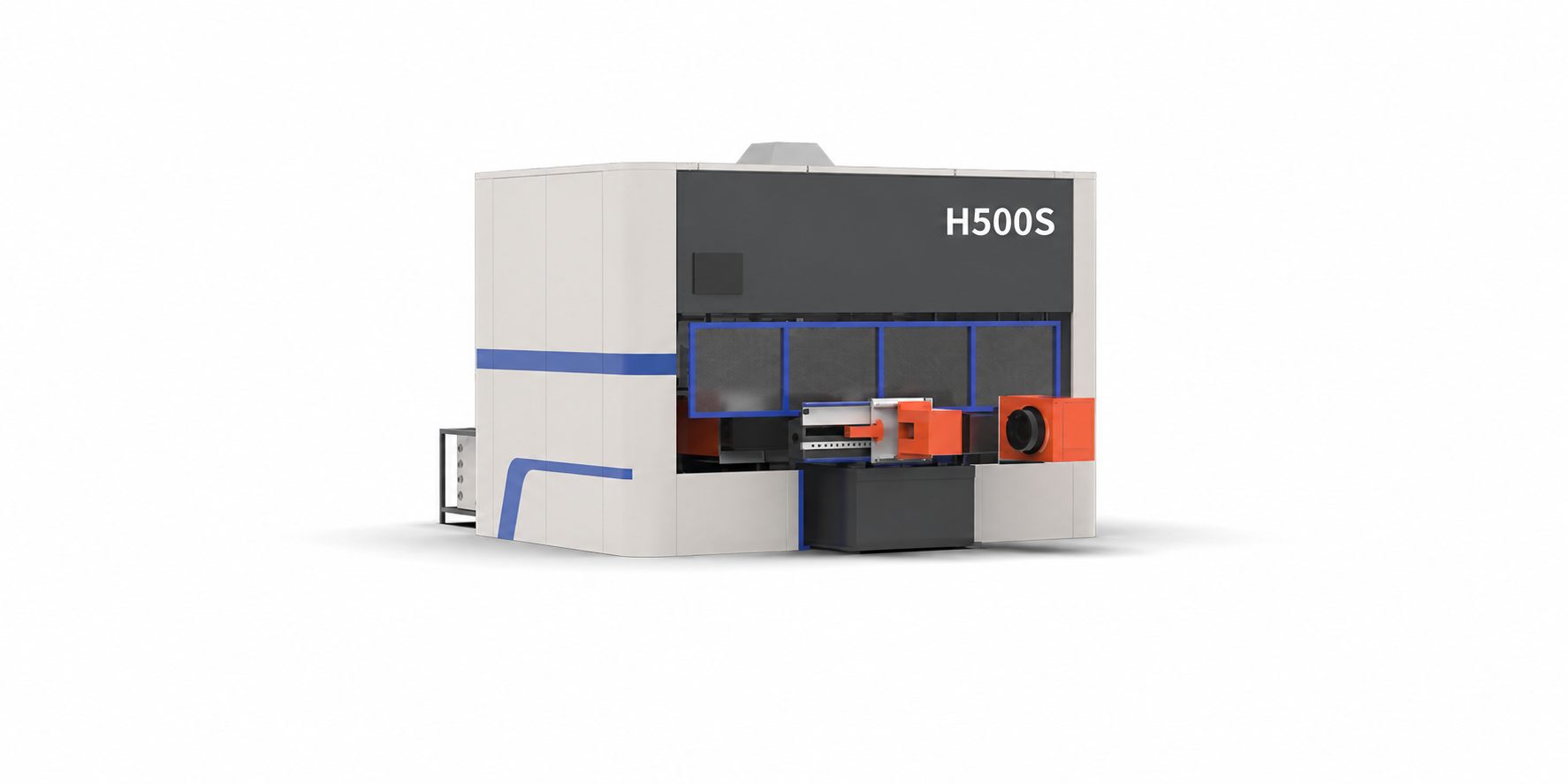

Production-base HWS-500 catalogue rendering. Not a factory photograph or proof of the offered configuration; request current photos and a node-welding trial.
Buyer decision
Can one cell repeat your node geometry?
Short connections with several arms and plates pose a different problem from long-beam handling: fixture datum, access to internal seams and changeover among node variants.
Fixture repeatability
Load and unload several parts, then measure the same critical points after every reset.
Seam clearance
Check torch approach and collision risk around plates, tube corners and adjacent arms.
Traceable inspection
Keep drawing revision, part ID, weld map and observed defects together for each trial.
Configuration evidence
Specify a node family and its fixture
Our Xiamen production base lists HWS-500 as a node welding workstation. Public model artwork does not establish that every connection shape, size or procedure is available on one standard cell.
- Node variants
- List every orientation and attachment combination to be run on one fixture.
- Fixture and datum
- Demonstrate repeat placement, clamp release and reloading.
- Weld access
- Simulate and test the most obstructed seam, not just the visible outer welds.
- Changeover
- Record manual adjustments, recipe selection and first-piece inspection for each variant.
- Quality check
- Measure assembly geometry and inspect welds to the buyer's stated standard.
- Acceptance trial
- Run repeated nodes from different variants and retain results by part ID.
Source and limit: HWS-500 product artwork identifies a node workstation. The displayed catalogue rendering is illustrative; other artwork in the source set has inconsistent model markings. No exact build or output is inferred from the rendering. Updated 27 September 2026.
Acceptance route
Repeat, reset and inspect the fixture
The trial should expose positioning variation across node variants and repeated loading, not just show one successful weld.
Identify node variant
Set fixture datum
Load and clamp
Weld every mapped seam
Release and reload
Measure repeated parts
Evidence to request
Ask for a current node trial, not a model rendering
Request current photos of the quoted workstation, the fixture drawing, sample node IDs, weld map and measured repeat parts. The catalogue rendering above helps identify the product family but cannot replace a current photo or witnessed trial of the quoted station.
Halcyon works directly with the factory production team on the documentation and trial. The configuration and acceptance responsibilities should be named in the order documents.
Optional configuration
Select the automation your order requires
Options are quoted only when they match the approved production workflow.
Welding source
Process and power source selected for steel grade, joint type and deposition target.
Robot package
Robot reach, axis count and external positioner configured to the component envelope.
Fixtures
Dedicated or adjustable jigs for the approved member and node families.
Seam tracking
Touch sensing, vision or seam tracking according to joint preparation and tolerance.
Fume extraction
Local extraction and filtration integrated with the cell enclosure.
Offline programming
Optional program preparation and production-data integration.
Applications and related models
Choose the model after the profile review
Robotic or assisted welding of structural nodes and connection assemblies.
Compare the complete welding cell scope
This model route focuses on node fixture repeatability and obstructed joints. Before comparing the machine total, review robot packages, pre-engineered cells and part-specific structural welding stations. Keep the same workpiece and acceptance criteria, and identify which handling, guarding, utilities, trial and service responsibilities are included.
FAQ
Questions for a node welding workstation
Can one fixture cover all my node designs?
Only a trial across the actual connection family can show that. Group variants by common datums and record any dedicated jaws or manual changes.
Which node should we test first?
Choose the one with the tightest seam access and most demanding geometric tolerance, then repeat it after several fixture resets.
Does an automatic weld remove the need for inspection?
No. Define dimensional and weld acceptance criteria and keep a traceable record for each sample part.
Send your drawing for a matched proposal
We will confirm the suitable model, process route, line modules and the values that can be guaranteed for your material.
- Node family and drawing revisions
- Steel grade, plate and tube thickness
- Weld symbols and seam map
- Critical datums and inspection standard
- Variant mix and target output
