Member envelope
Confirm the largest cross-section, length, weight and clamping clearance against the proposed loading and cutting layout.
Fabrication & Welding Equipment
Beam Laser Cutting Machine: HLC-750 Rotary-Table System
Buying a beam laser cutting machine for structural steel? First verify whether the proposed HLC-750 can locate, cut and mark your actual beams or other agreed sections from your production files. Halcyon prepares the proposal with our factory team; the offered build and acceptance criteria are confirmed from your drawings and sample parts.
Structural membersprofile fit first
NC1 inputtest a real file
Bevel + markingverify on samples
Buyer decision
When does HLC-750 merit a sample trial?

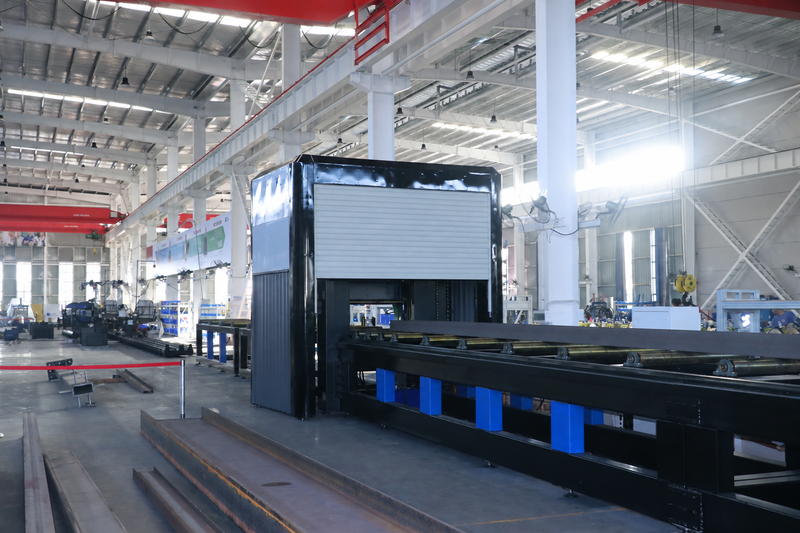

Our Xiamen production base describes HLC-750 as a rotary-table laser system for beams, tubes, channels and other supported sections. A buyer should verify these operations on their own member, not infer a guaranteed range from the model name.
File-to-part workflow
Bring a real Tekla NC1 file and check whether the intended cut, hole and mark instructions survive import.
Connection details
Use a sample containing the required bevels, holes and weld marks; inspect their location and edge condition after cutting.
Handling boundary
Confirm how long members enter, remain supported and leave the laser enclosure without interference.
Configuration evidence
Which figures must the quotation settle?
Published supplier material contains differing laser-power and travel descriptions. These are not a guaranteed specification for the machine offered to you. Obtain one signed configuration sheet and an acceptance method for every required value.
- Supported profile
- Confirm each required beam, tube or channel against chuck opening, weight and support arrangement.
- Laser source
- State the exact selected model and power in the signed offer; do not combine values from different supplier references.
- Bevel and hole geometry
- Test the smallest hole, critical bevel and connection clearance on the specified steel.
- Software input
- Import the buyer's actual Tekla NC1 file and check part ID, orientation, cut path and marks.
- Member handling
- Specify maximum length and weight together with support, feeding and unloading method.
- Acceptance evidence
- Record sample drawing revision, material, cut measurements and any rework before approval.
Source and limit: HLC-750 product description lists functions and reference data. Halcyon has not independently verified a buyer-specific build or cutting result. Reviewed 2 October 2026. The source still gives conflicting laser-power and travel descriptions; obtain the selected configuration in writing.
Sample acceptance
Run one buyer file through the proposed process
A useful trial follows the same file, member and inspection method that production will use.
Download a beam laser cutting trial record
Use this blank 18-field trial record to connect the buyer's drawing and NC1 file to measured holes, bevels, marks and handling results. Agree the tolerances and measurement method before cutting. Complete one identified record per trial member; attach the original file, measurement sheet and photographs.
Measure the finished feature against its agreed datum. A supplier's positioning-accuracy figure is not automatically a finished-hole tolerance or proof of connection fit. Record cutting, loading and unloading times separately if output matters; no sample values or passed result are supplied in this blank record.
Confirm drawing revision
Import NC1 file
Clamp sample member
Cut and mark
Measure critical features
Record deviations
Evidence to request
See the exact offered layout and its trial results
Request current workshop photos or video of the selected configuration, the component list, software screens for your file, and measured sample parts. Supplier renderings cannot prove the final machine, laser source or cutting accuracy.
Halcyon prepares the documentation and trial with our factory team. The final configuration and acceptance responsibilities should be named in the order documents.
Quotation checklist
Keep these options tied to the sample result
Each option changes process capability, handling or safety scope and needs its own evidence in the offer.
Laser and head
Identify the exact source, cutting head and supported steel grades.
Bevel operation
Check angle, root face and edge finish on the specified joint.
Chuck and supports
Show how the heaviest and longest proposed member remains located.
NC1 workflow
Demonstrate import, nesting, marking and part identification using your files.
Extraction and guarding
Document enclosure, extraction and the destination's applicable safety review.
Acceptance package
Include drawings, sample material, measurements and responsibility for corrections.
Applications and related models
Choose the model after the profile review
Multi-axis laser cutting of heavy structural members with automatic positioning and programmed operations.
FAQ
HLC-750 questions from structural-steel buyers
Can our Xiamen production base's published range be treated as my guaranteed range?
No. The selected source, chuck, supports, software and material must be listed together in your signed technical offer and tested on a representative member.
What file should I provide for a useful demonstration?
Send a revision-controlled member drawing, one real Tekla NC1 file, steel grade and thickness, plus the holes, bevels and weld marks that matter to your connection.
How should I compare HLC-750 with HLC-350?
Compare your member envelope, clamping and support needs, required bevel and marking operations, software import and measured sample result. Model names alone are not a performance ranking.
Send your drawing for a matched proposal
We will confirm the suitable model, process route, line modules and the values that can be guaranteed for your material.
- Member and connection drawings
- Steel grade, thickness, length and weight
- Tekla NC1 file and required marks
- Sample acceptance measurements
- Target output and destination power supply
Does your NC1 preview contain every required feature?
Compare the drawing, export log, actual file and machine preview before cutting. Use the NC1 missing-hole and marking review guide and its blank reconciliation record to identify unresolved features for a configuration-specific trial.
