Incoming stock
Compare bundle sizes, straightness, member length and surface condition with the proposed feed system.
Fabrication & Welding Equipment
HLC-350 Tube & Profile Laser Cutting Machine
Our Xiamen production base lists HLC-350 for round, square and rectangular tubes, channels, H-beams and special-shaped profiles, with automatic feeding and unloading. This is a tube-and-section cutting reference, not evidence of a flat-sheet laser cutting bed. Match the proposed clamps, stock sizes and cut samples to your drawings; Halcyon prepares the exact proposal with our factory team.
Profile mixcheck each section
Feed-to-cuttrial the workflow
Part exitinspect and sort
Production-base rendering, not a photo of the final machine. Confirm the offered layout and trial results before ordering.
Buyer decision
Can HLC-350 handle your actual cutting queue?
Our Xiamen production base describes automatic feeding, conveying, cutting and unloading across several steel-section types. A useful comparison starts with the buyer's parts list and shows where manual loading, recipe changes or sorting remain necessary.
Mixed profiles
Trial the round, square, rectangular and open sections you really buy, including clamp changes between batches.
Cut result
Measure length, cut angle, edge condition and heat-affected area on your specified grade and wall thickness.
Part handoff
Check unloading position, part identification and segregation of accepted pieces, scrap and remnant.
Configuration evidence
Specify the feed-to-cut route, not a speed slogan
Our Xiamen production base identifies supported section families but does not establish a guaranteed output for every profile or material. Ask for one configuration schedule and sample trial covering your real product mix.
- Profile families
- Test every required round, square or rectangular tube, channel, H-beam and special section individually.
- Loading and clamp
- Document bundle presentation, maximum member weight, grip marks and changeover steps.
- Cutting recipe
- Record source selection, material grade, wall thickness and drawing revision for each trial piece.
- Unloading
- Confirm part orientation, sorting, remnant handling and operator access.
- Output claim
- Set a timed test over an agreed mix, including loading, changeover and unloading; do not infer throughput from the model name.
- Acceptance record
- Log measurements, edge photographs, rejected pieces and correction steps.
Source and limit: HLC-350 product description lists feeding, material and section categories. It does not verify a Halcyon buyer-specific result. Updated 2 October 2026.
Section capacity review
Which tube dimensions must the offered laser cutting machine support?
List each section separately. A maximum round-tube diameter does not, by itself, approve a square tube, rectangular tube or H-beam. Compare the stock envelope, gripping arrangement, support and cut features together with our factory team.
| Section | Drawing and stock details to supply | Written configuration check |
|---|---|---|
| Round tube | Outside diameter, wall thickness, grade, stock length and member weight | Confirm the minimum and maximum diameter, clamp contact, support and cutting limits for that material. |
| Square tube | Outside side dimensions, corner radii, wall thickness and stock condition | Confirm the allowed square section and its clearance through the feed, chuck and cutting zone; do not use the round-tube limit as approval. |
| Rectangular tube | Both outside sides, diagonal, corner radii, wall thickness and orientation | Check both side limits and the required diagonal envelope, with the proposed gripping and support arrangement. |
| Channel, H-beam or special profile | Complete cross-section, flange and web thicknesses, mass, stock length and required cut faces | Confirm how the open section is gripped, supported and presented to the head. Trial each critical cut face and any quoted bevel. |
For every approved combination, also record the finished-part length, unloading route and measured remnant after the agreed cutting sequence. Minimum usable part length and remnant depend on the proposed configuration; no zero-waste or universal-size claim is made here.
Download the blank section-capacity review sheet before requesting a quotation. It records requirements and supplier responses, not HLC-350 capacity ratings. Then use the mixed-profile trial record to verify the agreed stock and parts.
Comparison-method source: HSG R Series manufacturer's brochure separates round, square and rectangular-diagonal capacity and identifies stock-weight and tailing conditions. Its values concern HSG machines; none are adopted as HLC-350 specifications. Halcyon buyer-review guidance, checked 3 October 2026.
Acceptance route
Time and inspect the complete mixed batch
Measure the same sequence that will run in your workshop, including changeovers and rejected parts.
Present stock
Load and clamp
Recall recipe
Cut sample
Unload and sort
Measure and log
Equipment details & factory reference
Review the proposed configuration before production
We provide the current machine layout, component list, sample profile and test plan for the exact quotation.
HLC-350 production-base machine referenceproduction-base photograph. This is not a photo or test result of the machine quoted for your order. Ask us for the production-base source listing, current workshop photos and trial cuts for the offered build.
Retouched production-base photoCutting and part references
Inspect the cut features you need to produce
These HLC-350 reference images show cutting in progress and examples of finished features. Use them to discuss your required operations, then test the actual stock and drawings on the proposed configuration.

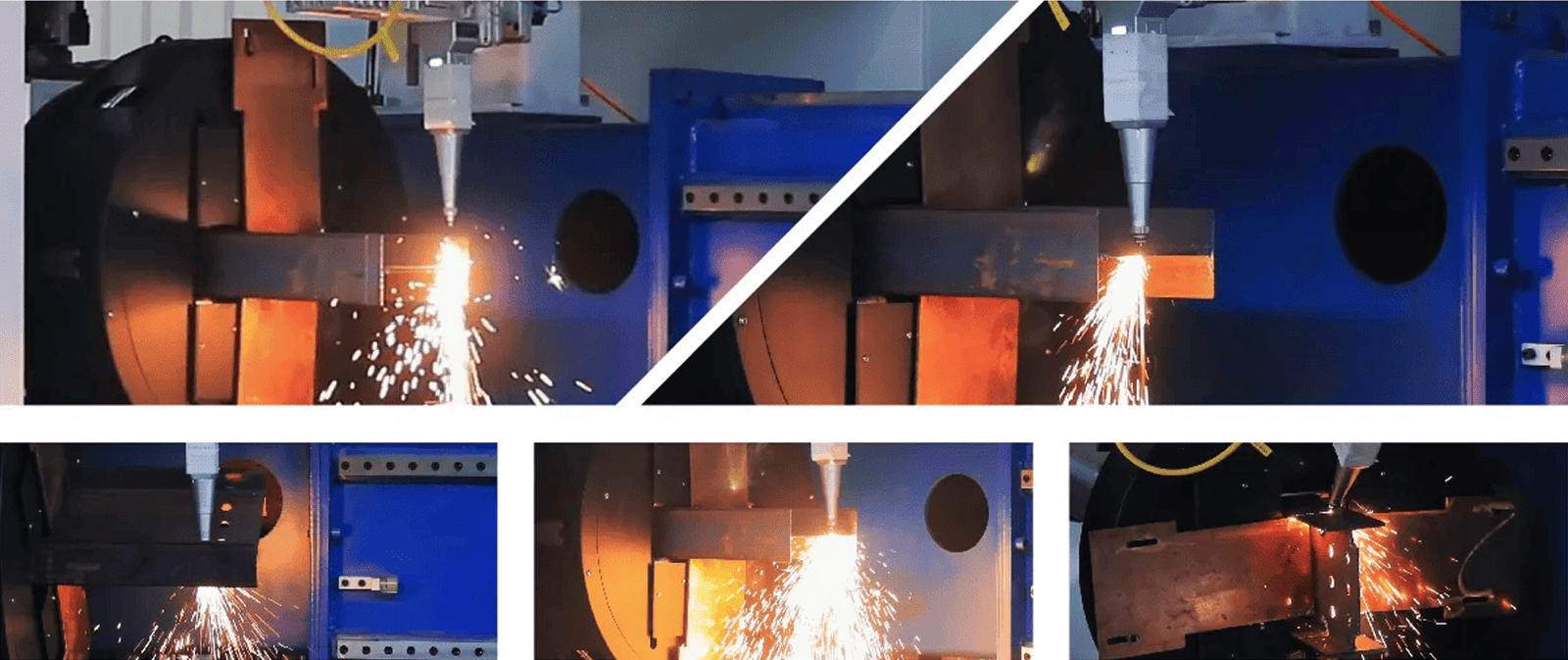

Section cutting in progressProduction-base reference photographs show the cutting head working around section faces. Ask for a continuous trial showing clamping, cutting and unloading for every critical section in your batch.

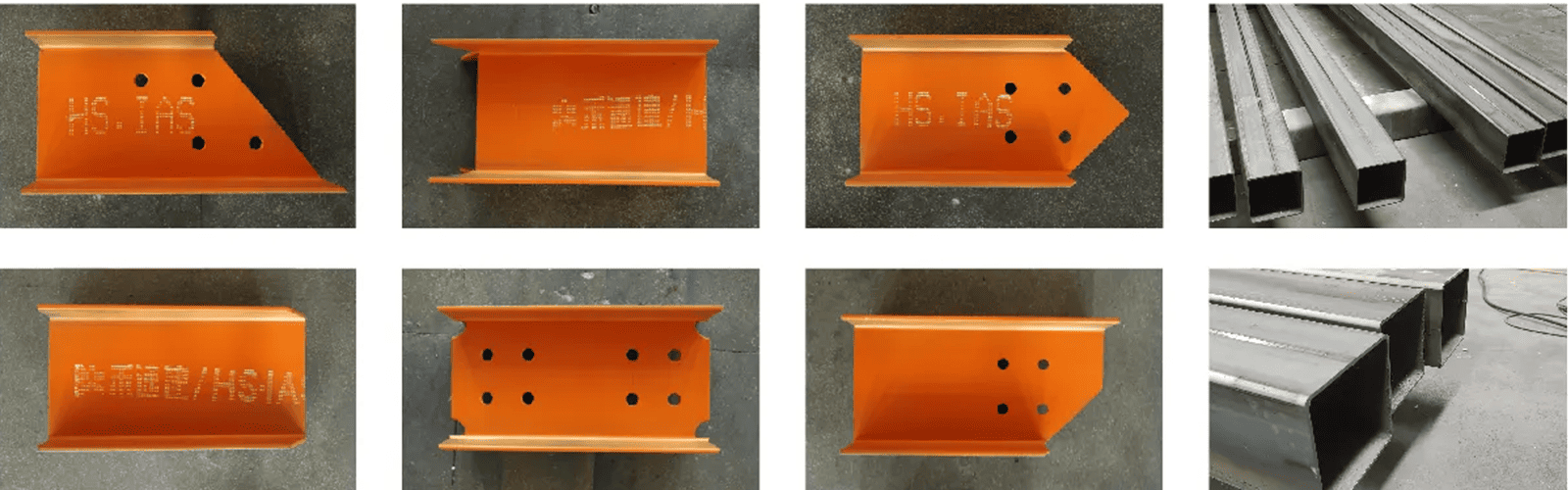

Holes, end contours and cut tubesThe source shows holes and shaped section ends alongside cut rectangular tubes. Photographs do not establish hole position, burr limits or dimensional tolerance. Measure your trial parts against the approved drawing and record any finishing required.
Image source: our Xiamen production base's HLC-350 process and finished-sample display. These are reference examples, not results from the machine quoted for your order. Keep the stock identification, drawing revision and measurements in the mixed-profile trial record.
Quotation checklist
Match each module to the actual queue
Options belong in the proposal only when their effect on loading, cutting, sorting or safety is demonstrated.
Automatic feed
Show bundle transfer and how bent or mixed stock is handled.
Clamping
Document support points and section-specific changeover steps.
Laser source
State the selected source and sample material in the offer.
Recipe input
Demonstrate how drawing revisions and part IDs are managed.
Part exit
Include sorting, remnant and scrap handling.
Enclosure and extraction
Include the safety and fume-control scope for the destination.
Applications and related models
Choose the model after the profile review
Select the model by member envelope, cutting details, automation needs and sample evidence. HLC-750 has a different structural-member workflow.
Download a blank mixed-profile trial record to compare measured parts, setup time and operator interventions for the configuration offered.
Cutting several section families on one line? Use the mixed-profile tube laser acceptance trial to plan sample stock, clamp changes and measurable output before approval.
Material utilisation
How should you verify tube laser remnant length?
Ask for a trial of the final parts from your actual stock length and section. The HLC-350 production-base description does not publish a verified minimum remnant length. A short-remnant figure from another machine cannot establish the result for this configuration.
- Define the remainder: separate the front trim, cut kerf, rejected parts and the unprocessed tail. Record whether any remainder is reusable stock or scrap; an advertised tail length is not the total material loss.
- Check the final-part sequence: identify the proposed chuck and support arrangement, any regripping steps, the shortest part that can be unloaded, and operator intervention. Have our factory team demonstrate the sequence under the agreed safety arrangements.
- Measure by section: repeat the check for each critical round, square, rectangular or open section, stock length and cut detail. Approval of one trial does not establish the same tail result for every job.
- Compare accepted output: keep the nesting plan and stock quantity with the accepted-part count, remaining lengths and elapsed time. A smaller tail is useful only when the required parts still meet the agreed drawing and inspection criteria.
Add these measurements to the blank mixed-profile trial record when requesting a written proposal. Reviewed 3 October 2026; this is a buyer test plan, not a published HLC-350 performance claim.
Comparable quotation
What determines tube laser cutting machine price?
There is no verified fixed HLC-350 price on this page. Request an itemised offer for your drawings and material mix. A price comparison is useful only when the cutting source, handling modules, trial criteria and delivery scope are the same.
- Cutting and stock scope: record the proposed laser source, tube or section envelope, wall thickness, stock length and member weight. Ask which combinations have been trialled rather than treating the model name as a capacity.
- Handling and utilities: list feed and unload modules, clamps, extraction, cooling and any specified assist-gas requirements; identify what is included, optional or supplied by the buyer.
- Software and setup: confirm drawing input, licences, nesting, configuration changes and operator training in the exact offer.
- Delivery and support: separate packing, transport, destination charges, installation, commissioning, warranty and service responsibilities. Request written scope for your country rather than assuming local installation or a particular delivery time.
- Proof before comparison: use the same mixed-profile trial and accepted-part measurement record for each configuration. Source power alone does not establish cost per accepted part.
Send the stock list and drawings through the machine quotation enquiry, and attach the blank trial record when agreeing what will be measured. This page concerns equipment procurement; it is not an offer of UK tube-cutting subcontract services.
FAQ
HLC-350 questions from mixed-profile buyers
Does automatic feeding mean unattended production?
No. Confirm how stock is loaded, how misfeeds and scrap are handled, and which steps require an operator in the exact offered configuration.
Is HLC-350 a flat-sheet laser cutting machine?
Our Xiamen production base lists tubes and structural sections for this model. Its description does not establish a flat-sheet cutting bed. If your job is primarily sheet or plate, send the sheet dimensions and material for a separate machine review rather than treating HLC-350 as equivalent.
Can a published profile list prove every size fits?
No. Send each critical section drawing and sample stock so clamping, clearance and cut quality can be checked.
How do I compare HLC-350 with HLC-750?
Use the actual member envelope, required bevel and marking operations, feeding method and measured trial results. Do not treat model numbers or “high-speed” wording as a ranking.
Send your drawing for a matched proposal
We will confirm the suitable model, process route, line modules and the values that can be guaranteed for your material.
- Drawings for each profile and cut detail
- Steel grade, wall thickness and stock length
- Batch mix and changeover frequency
- Sample measurement requirements
- Destination power supply and safety scope
