HLG-300 Structural Floor Framing Machine
Our Xiamen production base's HLG-300 catalogue describes a 300 mm structural floor framing profile, not a general multi-size drywall keel line or a ribbed composite deck sheet line. Submit your floor member drawing, material and hole schedule so the offered tooling and trial can be checked before a technical proposal. For ribbed decking sheets and installed cover width, review the separate floor deck roll forming machine.
Drawing firstfloor profile and tooling
HLG-300production-base catalogue reference
CSV inputproduction-base catalogue reference
HLG-300 machine photograph. The Halcyon logo is a digital website overlay, not a mark on the manufactured machine. Confirm the offered build against your drawing.
Price range: light gauge steel framing machines
US$59,000–91,000 (standard) · US$104,000–169,000 (premium), FOB China
Standard covers the first two configuration levels (single-profile and multi-profile / quick-change); premium covers fully automatic lines.
Final price depends on profile, thickness, speed, punching and automation. Excludes freight, import duties and installation. Send your profile drawing for a quotation within 24 hours. North American configurations (480V/60Hz, UL and local requirements) are quoted separately.
Large complete lines (e.g. truck chassis beam lines or full cable tray lines) are quoted per project, typically above US$150,000.
Manufactured in our Xiamen factory · 35+ years of roll forming experience.
Get a quote for this machine
Send your profile drawing or a photo of the profile. We reply within 24 hours with a configuration and price.
Commercial terms
- Lead time
- standard machines 30–60 days; automatic and heavy-duty lines 60–120 days (confirmed in the quotation).
- Warranty
- 12 months on the machine, lifetime technical support by video and remote guidance; wear parts excluded.
- Payment
- 30% deposit; 70% before shipment, after you approve the trial-run video.
- Shipping
- FOB Xiamen, China.
Product advantages
Built around the actual production task
The engineering starts from the part, material, tolerances, operations, production data and required output.
Integrated operations
Punching, marking, cutting and discharge are arranged around the required production sequence.
Production-data route
Confirm the accepted input file, hole schedule, cut length and marking data in a trial. Do not assume that this fixed HLG-300 reference changes profile size automatically.
Verified output
The agreed coil and sample profile are used for pre-shipment testing and measurement.
Published production-base reference
What the HLG-300 catalogue actually identifies
Our Xiamen production base describes HLG-300 as equipment for a structural floor framing profile. Its published numbers are a model reference, not a guarantee for a different drawing or quoted configuration.
- Published profile width
- 300 mm reference
- Published material thickness
- 1.2–2.2 mm reference
- Published side-leg height
- 50 mm in the production-base profile drawing; confirm the ordered section and connections
- Published forming stages
- 13 reference
- Published drive / hydraulic power
- 22 kW / 11 kW reference
- Published line speed
- Up to 35 m/min reference; not finished-part output
- Guaranteed values for your order
- Only those confirmed in the signed technical agreement and acceptance plan
Source and limit: HLG-300 product page, checked 28 September 2026. The catalogue describes 50 mm as a web height; its profile drawing shows this as the side-leg dimension. Confirm the approved section on a signed drawing. The published page does not prove that every size, steel grade or operation requested by a buyer is included in a quotation. Request current machine images and a trial using your material.
Production process
The complete production sequence
The proposal defines every station, interface, production assumption and acceptance checkpoint.
Coil loading
Leveling and guiding
Punching / marking
Roll forming
Cutting to length
Discharge and inspection
Production-base evidence

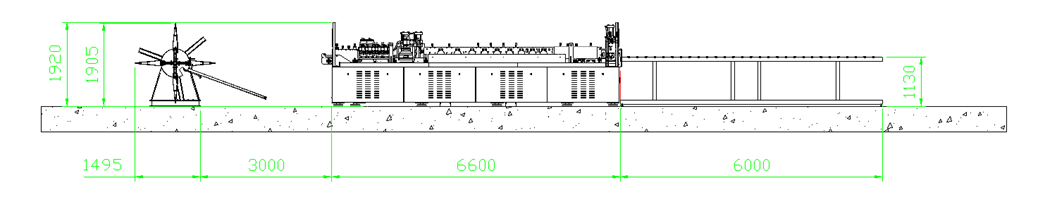

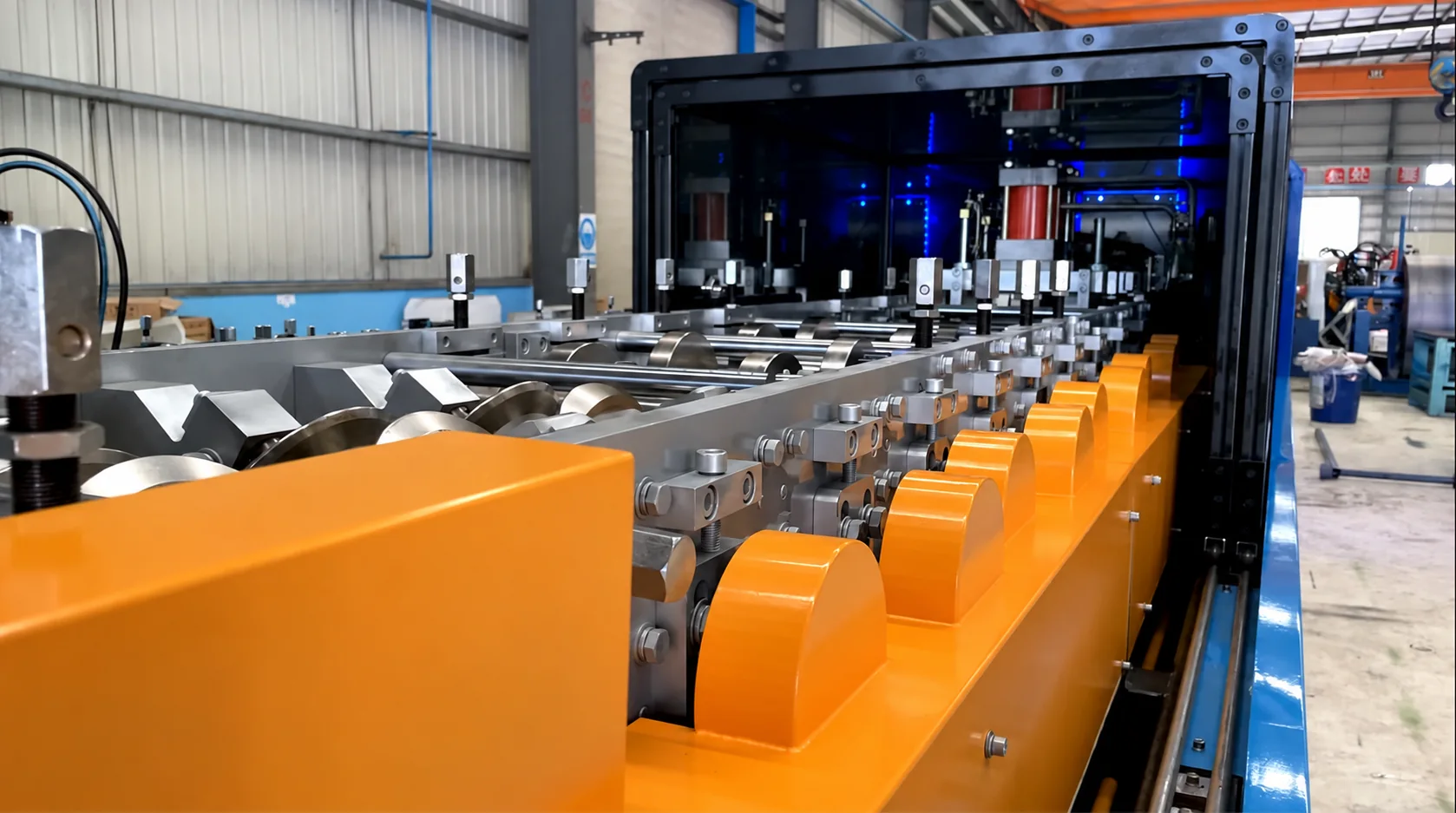

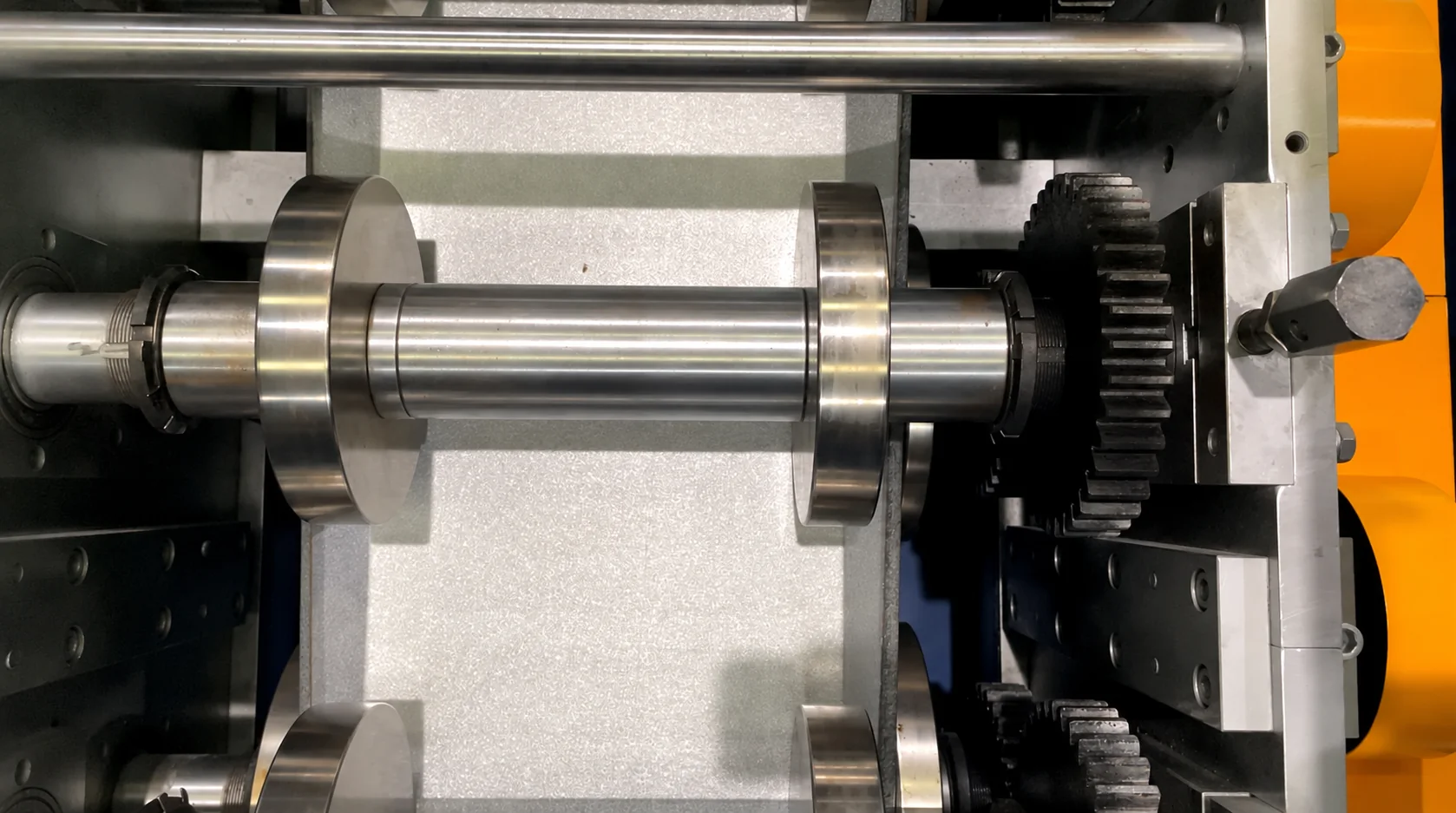

See the HLG-300 machine, profile and proposed line layout
These are HLG-300 catalogue references, used with our Xiamen production base's commercial permission. They identify a published example; they do not replace the profile drawing, tooling schedule and factory acceptance plan for your order.

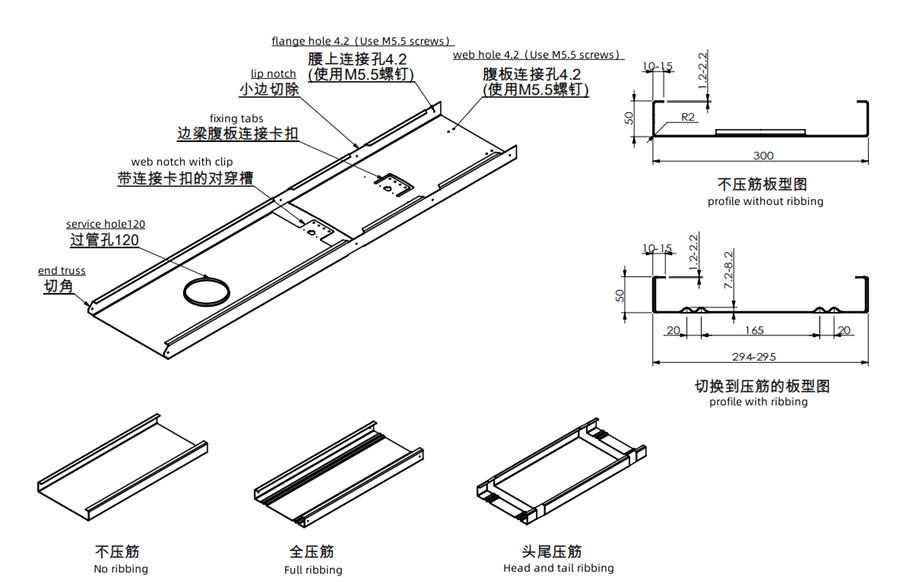

Published tooling list: end truss, 120 mm service hole, web notch with clip, fixing tabs, lip notch, 4.2 mm flange hole and 4.2 mm web hole. Verify each feature on a trial part and confirm which tools are included in the quotation. The published hole sizes alone do not establish fastener suitability. For the sample record, use the floor-framing service-hole and connection trial guide to identify the drawing revision, opening position, edge distances and mating parts; a tooling list alone does not prove an accepted connection.
Source: HLG-300 product details from our Xiamen production base's catalogue. Ask us for a current running video of the offered line; a captioned site version remains under review.
Optional configuration
Select the automation your order requires
Options are quoted only when they match the approved production workflow.
Coil handling
Manual, hydraulic or powered decoiler selected for the specified coil weight.
Hole processing
Servo or hydraulic punching and marking arranged to the approved hole schedule.
Profile tooling
Specify the exact floor member drawing and ask which tooling changes the offered HLG-300 build supports.
Cutting system
Pre-cut, post-cut or flying cut selected for profile stability and cycle time.
Automatic handling
Run-out table, stacker, bundling or robot transfer for the required output.
Electrical package
Destination voltage, component brand, guarding and documentation language.
Applications and related models
Choose the model after the profile review
The HLG-300 reference is for a structural floor member. For a different stud, track or joist family, compare a dedicated model against the same approved drawings.
FAQ
What we need before confirming the machine
Is HLG-300 a multi-size drywall keel line?
No such capability is established by the published HLG-300 reference. It describes a structural floor profile; request a separate tooling review for any stud, track or alternate floor member.
Does HLG-300 produce composite floor deck sheets?
Its published drawing shows a structural floor framing member with service and fixing features. A ribbed deck sheet requires its own drawing, effective-cover check and floor deck line review; the applications should not be combined in one unverified specification.
Which drawing should I send?
Send a dimensioned floor-member cross-section, connections, hole locations, finished lengths and critical tolerances.
Can you confirm speed from the model name?
No. Guaranteed output depends on steel grade, thickness, profile, punching frequency, cut length and handling method.
What is included with the quotation?
The proposal lists the line modules, layout, electrical standard, exclusions, test material, delivery scope and production assumptions.
Send your drawing for a matched proposal
We will confirm the suitable model, process route, line modules and the values that can be guaranteed for your material.
- Dimensioned profile drawing
- Material grade and thickness
- Hole pattern and finished lengths
- Target output per shift
- Power supply and destination country
