HLG-2025 is a model family with separately documented fixed-profile variants for wall, floor and roof members. The final tooling, layout and guaranteed output are confirmed after we review your profile drawing and production target. For a broader buying framework, see the CFS framing-line selection guide.

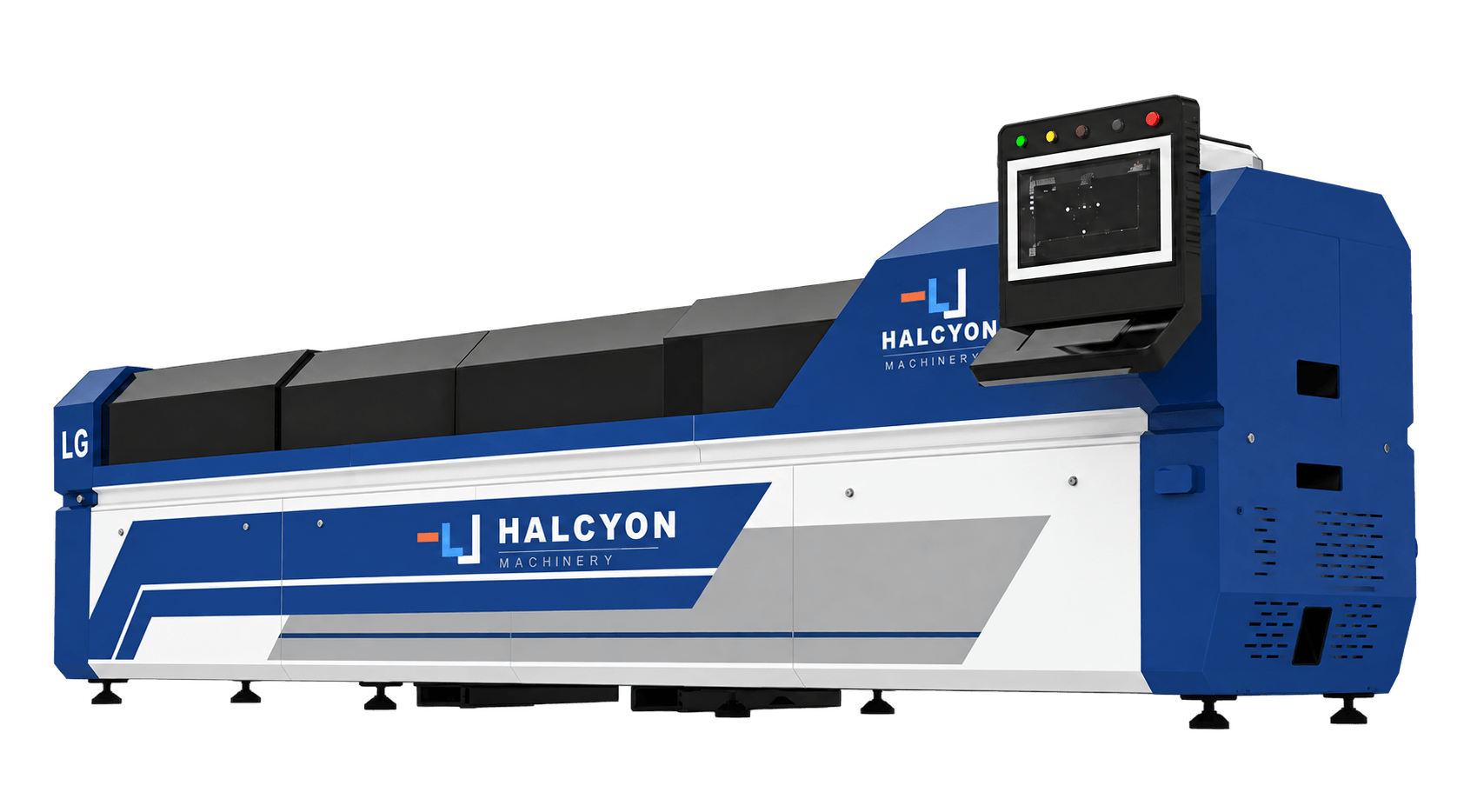

Reference configuration. Final machine follows the signed technical agreement.
Quick answerThe Halcyon HLG-2025 light gauge steel framing machine punches and roll forms C-studs, tracks and framing members for steel-framed buildings. Variants HLG-2025S-89, S-140, T-89/91 and Pro-89 cover 0.75–1.2 mm steel (Pro up to 1.6 mm). Lead time: 30–60 days for standard machines, 60–120 days for automatic lines, FOB Xiamen, China. Manufactured in our Xiamen factory · 35+ years.
US$59,000–91,000 (standard) · US$104,000–169,000 (premium), FOB China
Standard covers the first two configuration levels (single-profile and multi-profile / quick-change); premium covers fully automatic lines.
Final price depends on profile, thickness, speed, punching and automation. Excludes freight, import duties and installation. Send your profile drawing for a quotation within 24 hours. North American configurations (480V/60Hz, UL and local requirements) are quoted separately.
Large complete lines (e.g. truck chassis beam lines or full cable tray lines) are quoted per project, typically above US$150,000.
Manufactured in our Xiamen factory · 35+ years of roll forming experience.
| Models on this page | HLG-2025S-89, HLG-2025S-140, HLG-2025T-89/91, HLG-2025Pro-89 |
|---|---|
| Lead time | standard machines 30–60 days; automatic and heavy-duty lines 60–120 days (confirmed in the quotation). |
| Warranty | 12 months on the machine, lifetime technical support by video and remote guidance; wear parts excluded. |
| Payment | 30% deposit; 70% before shipment, after you approve the trial-run video. |
| Where it is made | Manufactured in our Xiamen factory · 35+ years of roll forming experience. |
| How to get a quote | Send your profile drawing or a photo; we reply with the configuration and price within 24 hours. |
Premium (fully automatic) lines: US$104,000–169,000. Standard machines: US$59,000–91,000. Prices are FOB China and exclude freight, import duties and installation; the final price is confirmed after we review your profile drawing.
standard machines 30–60 days; automatic and heavy-duty lines 60–120 days (confirmed in the quotation).
Manufactured in our Xiamen factory · 35+ years of roll forming experience.
Send your profile drawing or a photo of the profile. We reply within 24 hours with a configuration and price.
The factory technical standards list separate HLG-2025S-89, S-140, T-89/91 and Pro-89 references. Compare the exact approved section and material before selecting a variant; a catalogue family name does not make one roll set cover every size.
Bring the wall, floor or roof member list and mark which finished section each part uses. Identify any size outside the quoted variant before choosing the line. For floor joists or roof-truss members, also check the member and joint trial requirements; an HLG-2025 family name alone does not confirm those profiles or connections.
Test a real project file through the proposed software workflow. Compare imported member IDs, hole positions and lengths with the approved schedule.
The published high-speed figure is a forming reference. Time a representative mix including punches, marks, cuts and part handling to establish usable shift output.
If the order frequently changes web widths, compare the documented HSK-2000 width bands and trial the changeover rather than assuming a fixed-profile HLG-2025 variant covers the mix.
Select the variant by web width and required material thickness.
| Variant | Profile | Thickness | High speed | Servo drive | Reference weight |
|---|---|---|---|---|---|
| HLG-2025S-89 | 89 x 41 x 10 mm; lip 7-12 mm | 0.75-1.2 mm | 48 m/min | 7.5 kW | About 3.8 t |
| HLG-2025S-140 | 140 x 41 x 10 mm; lip 7-12 mm | 0.75-1.2 mm | 48 m/min | 7.5 kW | About 3.8 t |
| HLG-2025T-89/91 | 89 / 91 x 41 x 10 mm; lip 7-12 mm | 0.75-1.2 mm | 48 m/min | 7.5 kW | About 3.8 t |
| HLG-2025Pro-89 | 89 x 41 x 10 mm; lip 7-12 mm | 0.75-1.6 mm | 48 m/min | 7.5 kW | About 4.3 t |
Output note: stated speed is the documented high-speed reference. Actual output depends on the tool package, hole schedule, marking and finished-member length.
The proposal defines every station, interface, production assumption and acceptance checkpoint.
We provide the current machine layout, component list, sample profile and test plan for the exact quotation.
Download the blank HLG-2025 variant and file-to-part checklist (Excel). Record the exact offered variant, approved member schedule, software and input-file versions, imported IDs and hole positions, and identified trial samples. Complete the record cells with the buyer and supplier; the worksheet contains no prefilled performance or acceptance results.
The factory's HLG-2025S/T/Pro technical standards are reference documents. The written offer should name the exact variant, drawing revision and included tooling.
CSV input reference: our Xiamen production base's official HLG-2025 product page, checked 4 October 2026, lists CSV as the machine input-file format. This is a production-base family reference, not confirmation of a file schema or compatibility for every S, T or Pro variant. Request the accepted CSV columns, units, member-ID rules and software version for the offered line. Run a revision-controlled project file and compare the resulting lengths, hole locations and numbered members with the approved schedule. CSV input alone does not establish direct DXF, IFC or other design-software compatibility.
State web, flange, lip, steel grade, coating and thickness for the chosen variant; list any alternate section separately.
Agree the accepted input format and record the file used for the acceptance run, including member IDs and revision.
List required service holes, notches, dimples, connection details and identification marks; verify them on samples.
Check finished length, first-off and repeat pieces, run-out support, sorting and any optional transfer equipment.
Confirm destination supply, controls, guarding and required compliance in the quotation rather than copying a catalogue configuration.
Agree trial coil, number of samples, dimensional checks, rejected pieces and the timed production mix before the factory run.
Wall, floor and roof framing components produced from building-model data.
Do not assume so. The supplied standards list S-89 and S-140 as separate fixed-profile variants. Ask the factory team to name the actual roll and cutter sets for every required drawing.
Test the proposed import with a real revision-controlled member schedule. Check the resulting IDs, hole locations, cut lengths and first-off pieces against that schedule.
No. It is a high-speed reference from the technical standards. Punching, marking, cut length and handling affect completed members per shift; agree a timed trial on your part mix.
We will confirm the suitable model, process route, line modules and the values that can be guaranteed for your material.
