Standing Seam Roofing Machine
Factory-direct standing seam roll forming machines from our production base in Xiamen, China, configured to your approved seam, pan width and clip system. Send your panel drawing for a quotation within 24 hours; we trial the actual joint before shipment.
Price range: standing seam machines
US$23,000–36,000 (standard) · US$45,000–75,000 (premium), FOB China
Standard covers the first two configuration levels (single-profile and multi-profile / quick-change); premium covers fully automatic lines.
Final price depends on profile, thickness, speed, punching and automation. Excludes freight, import duties and installation. Send your profile drawing for a quotation within 24 hours. North American configurations (480V/60Hz, UL and local requirements) are quoted separately.
Large complete lines (e.g. truck chassis beam lines or full cable tray lines) are quoted per project, typically above US$150,000.
Manufactured in our Xiamen factory · 35+ years of roll forming experience.
Get a quote for this machine
Send your profile drawing or a photo of the profile. We reply within 24 hours with a configuration and price.
Commercial terms
- Lead time
- standard machines 30–60 days; automatic and heavy-duty lines 60–120 days (confirmed in the quotation).
- Warranty
- 12 months on the machine, lifetime technical support by video and remote guidance; wear parts excluded.
- Payment
- 30% deposit; 70% before shipment, after you approve the trial-run video.
- Shipping
- FOB Xiamen, China.
Forming panels on the roof site? See our portable roll forming machine for standing seam and other on-site profiles.
Forming panels on the roof site? See our portable roll forming machine for standing seam and other on-site profiles.

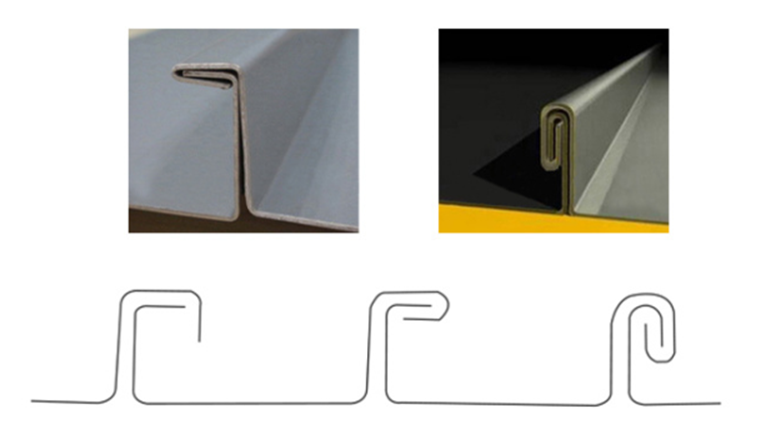

Which standing-seam profile is required?
Direct answer: Locking method, seam height, pan width, clip geometry and coil material must match the approved roofing system. Snap-lock and mechanically seamed panels need different tooling, so we specify which one the line is built for. Confirm the full section drawing and trial seam with the intended clips and seaming tools.
- System inputapproved seam type, pan and edge geometry, clip and movement details
- Material inputspecified metal, grade, coating and thickness range
- Production inputcut lengths, on-site or factory workflow and target output
- Trial evidencepanel width and seam measurements, cut edge, coating and clip/seam fit
Should panels be roll-formed on site?
That decision depends on transport limits, panel lengths, access, handling, weather protection and the approved equipment configuration. A mobile unit is not assumed to be included. The project roof designer remains responsible for slope, water tightness, wind load and code compliance. Compare roof sheet procurement questions before requesting a quotation.
For the machine-location decision, use the factory versus portable roof-panel roll former buyer guide. It separates fixed-line handling from on-site access and transport requirements; neither route is promised until a named model and your seam drawing are reviewed.
Reference example: Our Xiamen production base publicly lists a low-profile standing-seam machine; its specifications are summarised below as a starting point. Our quotation names the model, tooling and trial method for your drawing.
What should a standing seam machine quotation include?
Direct answer: A standing seam roll forming machine price is comparable only when the offers cover the same panel and seam drawings, material, tooling, production location and acceptance method. If you are comparing a standing seam machine for sale, ask for the named build and its current availability in writing. Our quotation lists the build, included accessories and compatibility with your roof system in writing.
- Panel-forming scopeIdentify the panel drawing revision, seam type, pan width, metal and coating, thickness range, included roll sets, cutter and size-change steps.
- Joint-closing scopeList the clips, hand tools or powered seamer required by the approved joint separately. Confirm whether each is supplied, optional or excluded. Do not treat a panel roll former and a roof seamer as the same piece of equipment.
- Coil and panel handlingSpecify the decoiler or reel arrangement, loading method, run-out supports, cut lengths and collection equipment. Check the actual coil and panel limits in the offered configuration.
- Factory or job-site packageFor site production, identify transport mounting, lifting and access, power supply, weather protection and panel support. Confirm which items the buyer must arrange; a trailer or mobile configuration is not automatically included.
- Trial and acceptanceUse the same approved coil and drawings for identified panels and an assembled seam with the intended clips and closing tools. Record dimensions, coating condition, rejects and accepted output under the agreed production sequence.
- Commercial and service scopeSeparate currency, quote validity, delivery term and named place, freight, import charges, installation, training, documentation, spares and warranty responsibilities. Mark unresolved charges as pending rather than zero.
Download the editable standing seam machine quotation record. Fill one copy for each offer and compare confirmed inclusions on the same basis. Our factory engineers in Xiamen review the configuration, and the written quotation states price, delivery time and service scope for the selected build.
Source and scope: Halcyon buyer-review checklist, reviewed 3 October 2026. New Tech Machinery's official FAQ directs buyers to a configuration-specific quotation; its published SSR accessory list illustrates why reels, run-out supports, transport arrangements and seaming tools need separate scope checks. These are other manufacturers' examples, not Halcyon prices. Use the seam trial checklist with the actual proposal.
Reference specifications: low-profile standing seam example
our Xiamen production base's published low-profile example separates the input limits by material rather than treating every standing-seam machine as interchangeable. Use these figures only to frame questions for the named machine and your approved roof profile; the current offered configuration must be confirmed in writing.
- Material reference0.4–0.7 mm pre-painted steel, or 0.7–1.2 mm aluminium-magnesium-manganese alloy, as listed for this catalogue example
- Panel and coil reference150–530 mm effective panel width and 220–600 mm input coil width; verify the actual section drawing and developed width together
- Published processdecoiling, levelling, roll forming, post-cutting and a product support table; identify any extra seaming, handling or site equipment separately
- Output referenceforming speed up to 15 m/min in our Xiamen production base's listing (finished-panel rate depends on profile, cut length and handling)
Source checked 28 September 2026: Our Xiamen production base's low-profile standing-seam product page. Before purchase, request the current model drawing, approved coil specification, clip and seam details, a timed trial method and identified first-off samples.
Machine video: Ask us for a running video of the low-profile standing-seam machine and a trial-run video of the line quoted for your profile.
Send us your profile drawing
Send the approved panel, clip and seam drawings, metal and coating details, finished lengths and target output. Our factory engineers in Xiamen review the forming and seaming scope and reply with a quotation within 24 hours.
Get a quoteHow much does a standing seam roll forming machine cost?
Direct answer: We quote every standing seam roll forming machine by configuration, not from a fixed price list. The price depends on the profile drawing, material thickness, punching and cutting, the level of automation and the delivery terms. Send your drawing and we reply with a written quotation for that exact configuration.
What affects the price
- Panel width and seam type (snap-lock or mechanically seamed)
- Steel or aluminium thickness and coating
- Number of panel widths from one machine
- Cutting method and maximum panel length
- Curving, tapering or seaming tools if required
- Control system and main component brands (PLC, servo, hydraulics)
- Decoiler, outfeed table and automatic stacking
- Delivery terms (FOB or CIF), packing and spare parts
Roll forming machines from Halcyon's Xiamen factory have been used on 150+ construction projects (2022–2026) in China and abroad, including an airport in Iraq, a national stadium in Senegal, resort buildings in the Maldives and a coal preparation plant in Mongolia. See the reference projects.
Trial the seam with the intended roof-system parts
Run panels from the approved coil and drawing, then check section dimensions, seam edge shape, cut length and visible coating condition on identified first-off and later samples. Assemble a trial seam with the intended clips and, where the system requires it, the specified seaming tool. Record fit issues and adjustments instead of approving the line from a single loose panel. See the snap-lock versus mechanical-seam trial checklist for a step-by-step record.
Does the forming trial prove weather tightness?
No. The trial checks the machine-produced panel and its fit with the specified joint parts. Roof-system weather, wind and structural performance require the responsible designer and applicable system test evidence.
Can one tool set form snap-lock and mechanically seamed profiles?
Only when the quotation lists separate approved drawings and tooling, or a documented changeover, for both seam types. We state this in writing for your order.
What should be sent for a proposal?
Send the approved panel and clip drawings, metal grade, coating, thickness range, coil width, intended site or factory workflow, finished lengths and target output.
Source and limits: Halcyon Machinery buyer-review framework, updated 28 September 2026. No measured speed or roof-system performance is claimed for an unspecified line; the production-base example above is a catalogue reference only.
